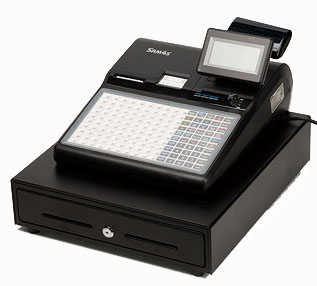

SPS-340 Single station System Cash Register

The SPS-340 is a solution for a wide range of Hospitality environments. It has a multiline line LCD Alpha/Numeric display with 7 different colours backlight and single drop in paper loading thermal printer and is well suited for the small to medium convenience store, fruit markets, restaurants and various retail operations.

Main Features:

High featured 2 Station Cash Register
High Speed (23 LPS) 1 Station Direct Thermal Printer with Auto Cutter.
Drop in Paper loading
8 Line 32 Character LCD Operator Display
Link up to 16 ECR's via IRC
3 x RS232 ports (2 X DB9 Male, 1 x RJ-45 Socket) for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output, the 4th port is USB Virtual COM port for PC Communication only
Up to 20000 PLU's
14 Digit PLU/Barcode Number Capable
Check Tracking for up to 200 Accounts for Table Management
15 Window Lookup Functions
Up to 5 Sales Price per PLU
Eat In/Takeaway/Drive Thru Function
Graphic Logo Print
Also available with raised keyboar

SPS340-Brochure

Printing Method	2 Station Direct Thermal Type with Auto Cutter
Printing Speed (Max.)	up to 23 LPS
Paper Width	57.5 ± 0.5mm
Paper Roll Diameter	Max ? 83.0mm
Paper Supply Method	Easy Paper Loading, Drop in and Print
Keyboard	150 Key Flat Keyboard
Display	Operator:	LCD 8 Lines of 32 Characters
	Customer	10 Digit VFD
Memory	ROM: 16 Mbits Flash ROM
	RAM: 16 Mbits SRAM
Memory Protection	90 Days
Interface	3 x RS232	COM1 : DB9 Male Serial
		COM2 : DB9 Male Serial
		COM3 : RJ45 Socket Serial
	1 x USB	COM4 : USB Virtual COM Serial (RJ45 Socket Serial Optional)
IRC	Batch mode IRC (up to 100 Meter)
Drawer	4B/8C
Memory Configuration ("Max." depends on Memory Sharing choices)	up to 20000 PLU's
	Max. 99 Clerks
	Max. 99 Groups
	Max. 200 Checks (Accounts)
	Max. 230 Lines Record Per Account
	Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
	Max. 5 Price Levels
	Max. 99 Mix & Match

OS Functions	32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
	18 Character Description
	14 Digit PLU Number
	5 Modifier Levels
	20 Macro keys (with Manager Control Option)
	10 Tender Keys
	Charge Posting Accounts
	Max. 4 Currency Conversion
	Inventory Item
	Condiment Item
	Table Management or Clerk Interrupt
	Training Mode
	9 Digit Clerk Password
	Graphic Logo on the Receipt Heading and Footing
	Maximum 230 Line Record per Transaction
Software Utilities	Programming Utility Software, ASCII converter for PC comm's Virtual Com Port Driver for Windows (32/64-bit)
Weight	12 Kg
External Dimensions (W x D x H)	400 x 455 x 305 mm
EMC/Safety Standards	CE, FCC, UL, TUV, GS, C-tick
Power Supply	AC 230V± 10%
